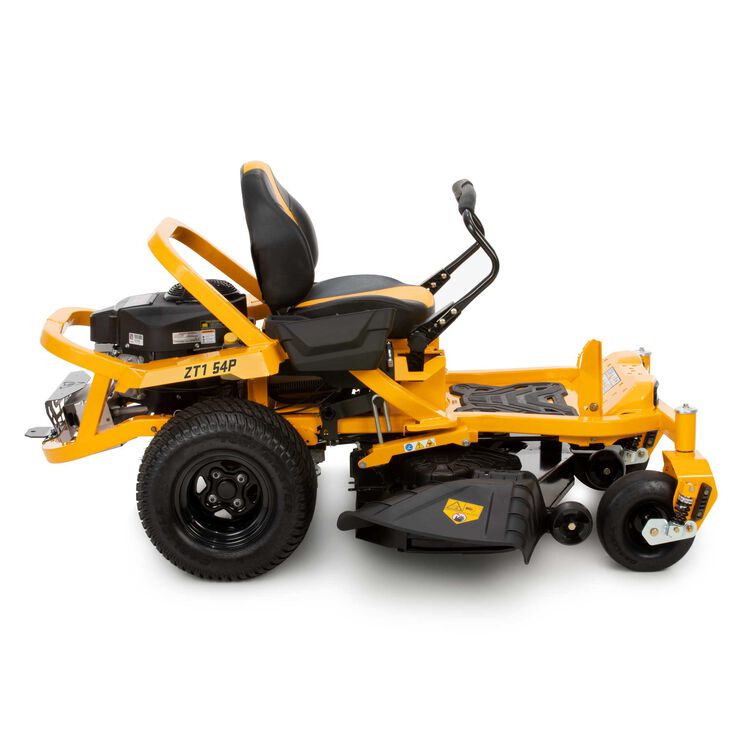

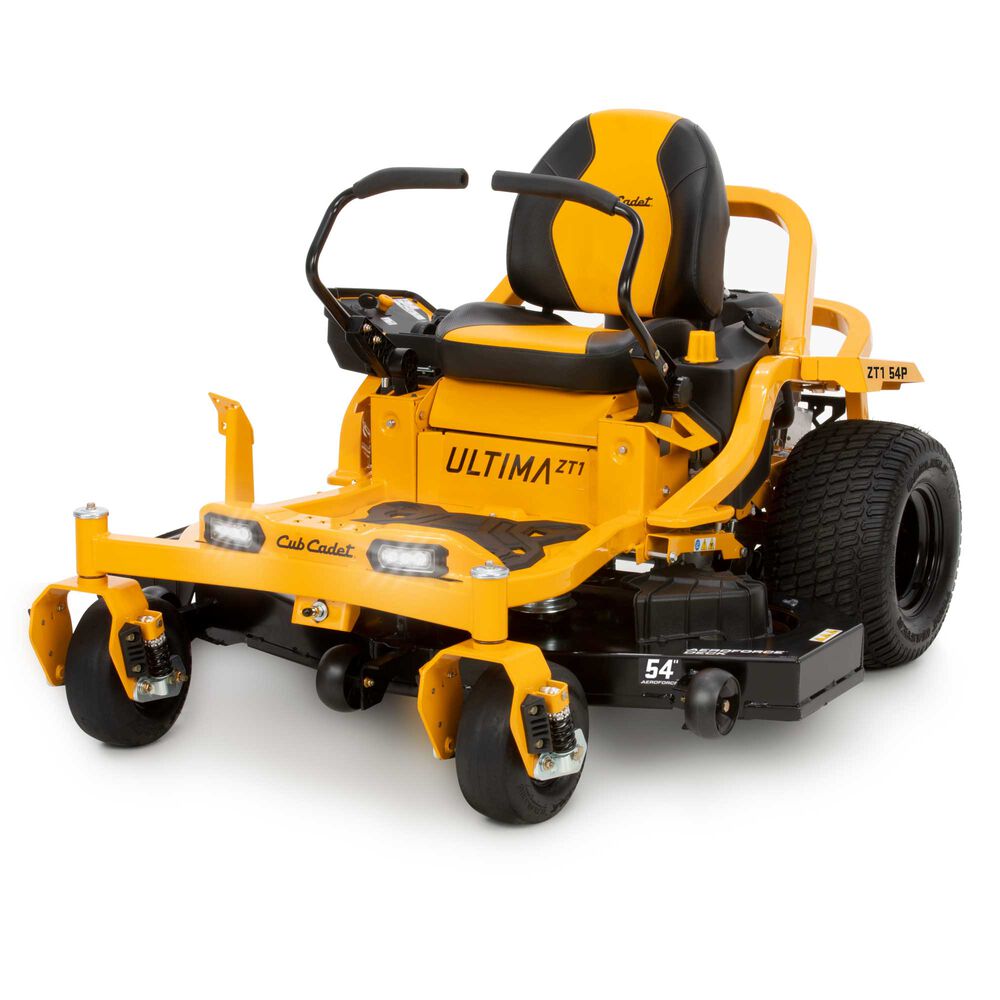

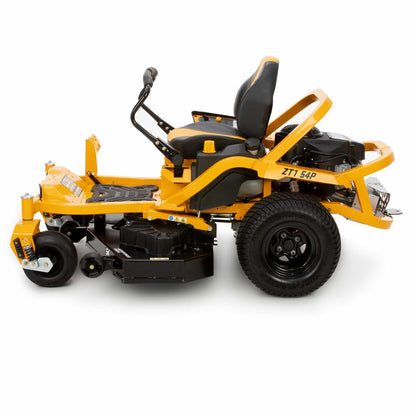

Cub Cadet Ultima ZT1 54 P

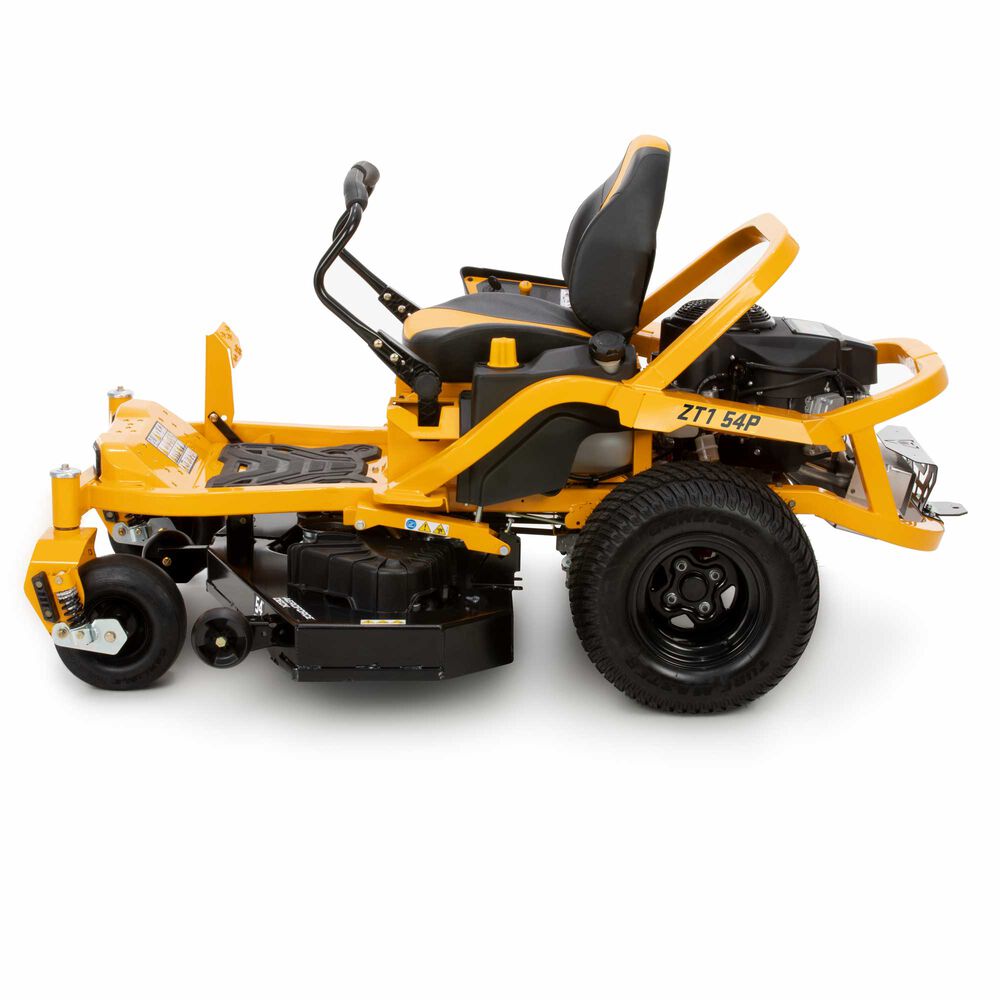

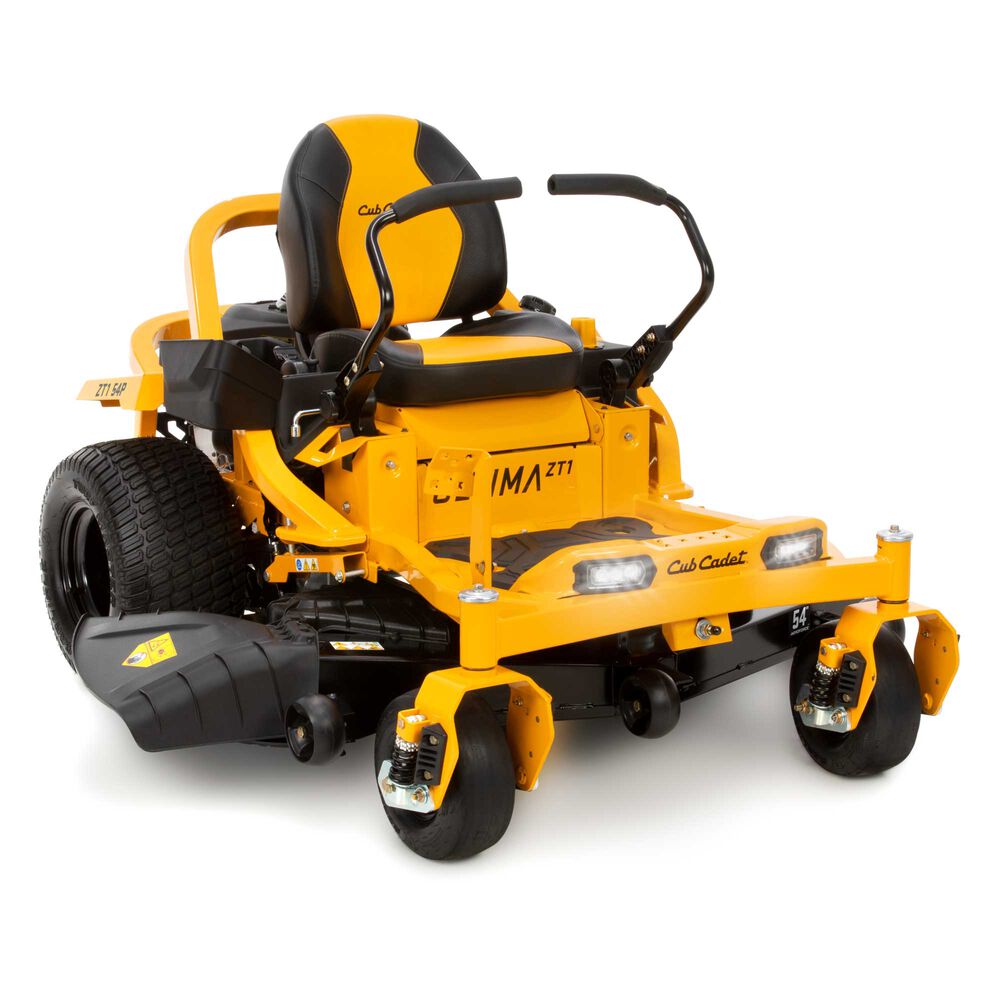

Cub Cadet Ultima ZT1 54P Zero-Turn Mower with Lap Bar Control

The Ultima ZT1 54P delivers high-performance power, a premium cut, and rugged durability — built with steel fenders, a reinforced frame, and Cub Cadet’s AeroForce cutting system for a stable, professional-quality finish every time.

Key Features:

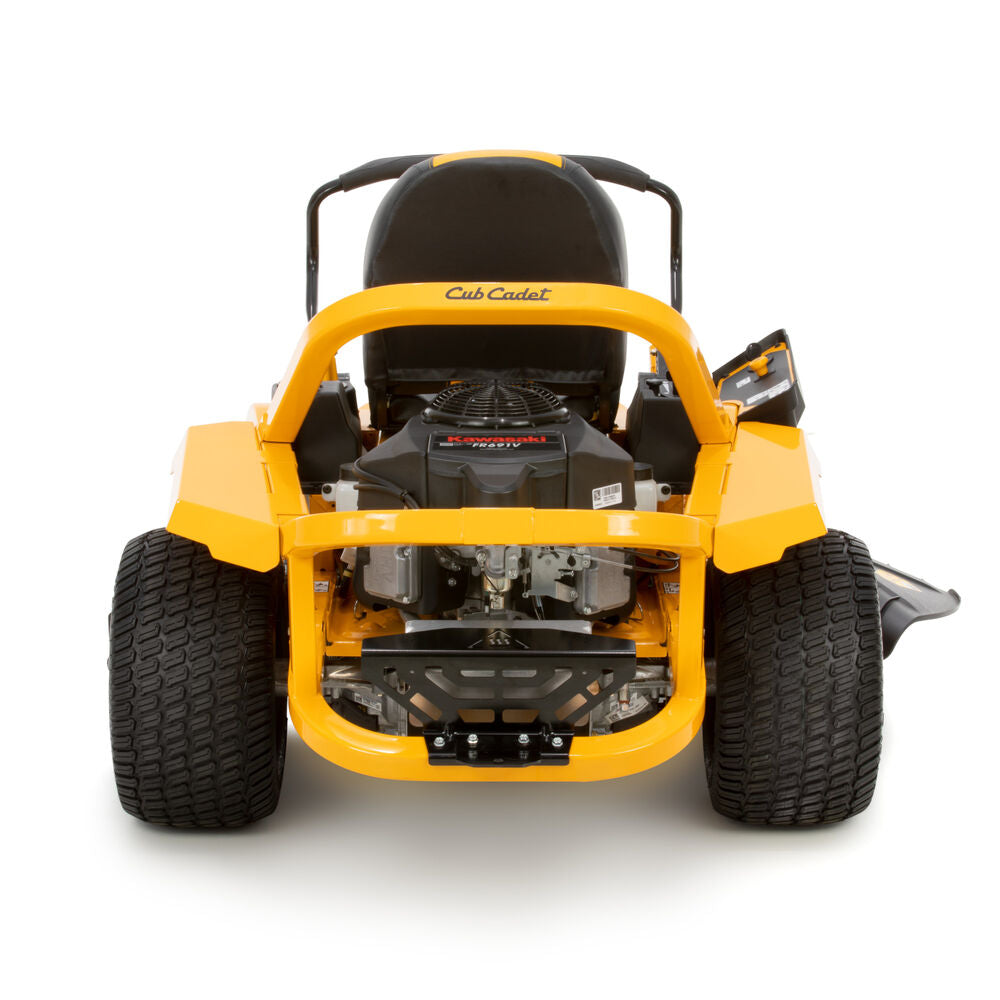

• 23 HP / 726cc Kawasaki® FR691V V-Twin OHV 4-Cycle Engine – 90° V-twin design for perfect primary balance, internally vented carburetor with fuel shut-off solenoid, and automatic compression release for easier starts and less wear
• Dual Hydro-Gear™ EZT 2200 Hydrostatic Drive System – Fan-cooled 10cc pumps and wheel motors on each drive wheel deliver optimal torque and speeds up to 7 MPH

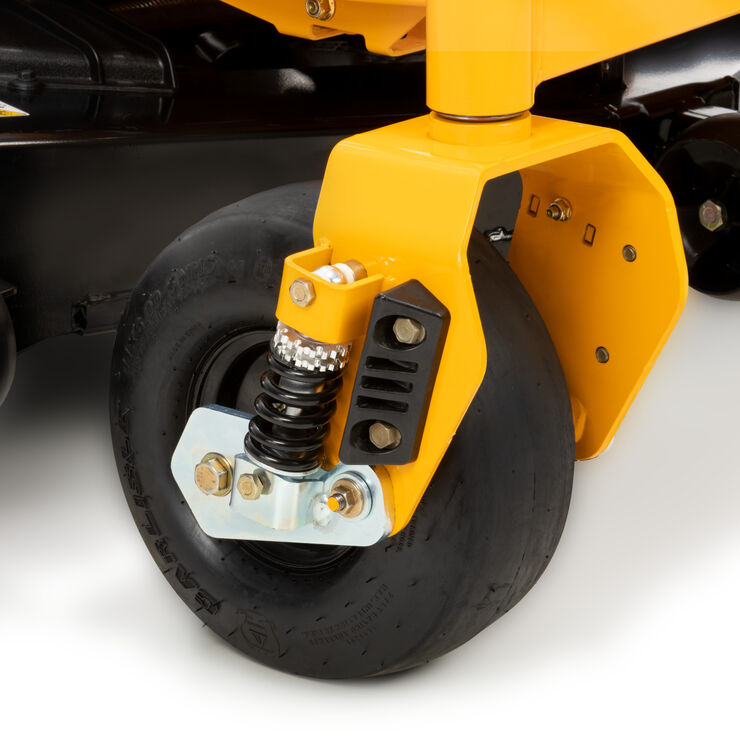

• Steel Fenders & Enhanced Stability – Larger rear wheels and front caster suspension improve stability, with a floor mat for vibration reduction and a removable floor pan

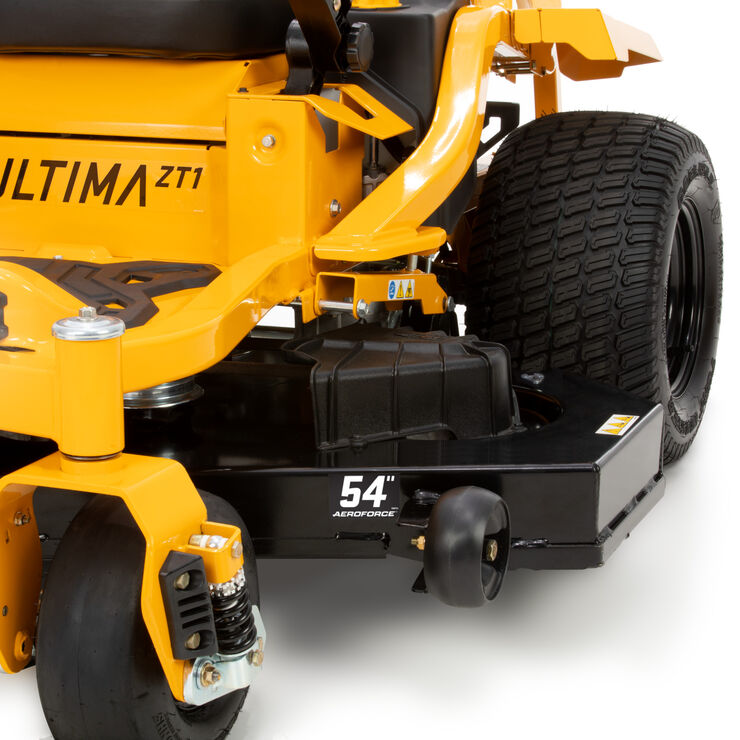

• 54-in. Fabricated 3-Blade AeroForce Deck – 15 cut heights from 1″–4.5″, optimized airflow and suction for better bagging and cut quality
• Durable Steel Frame – Squared tubular steel construction reduces chassis flex for a more even cut and increased stability

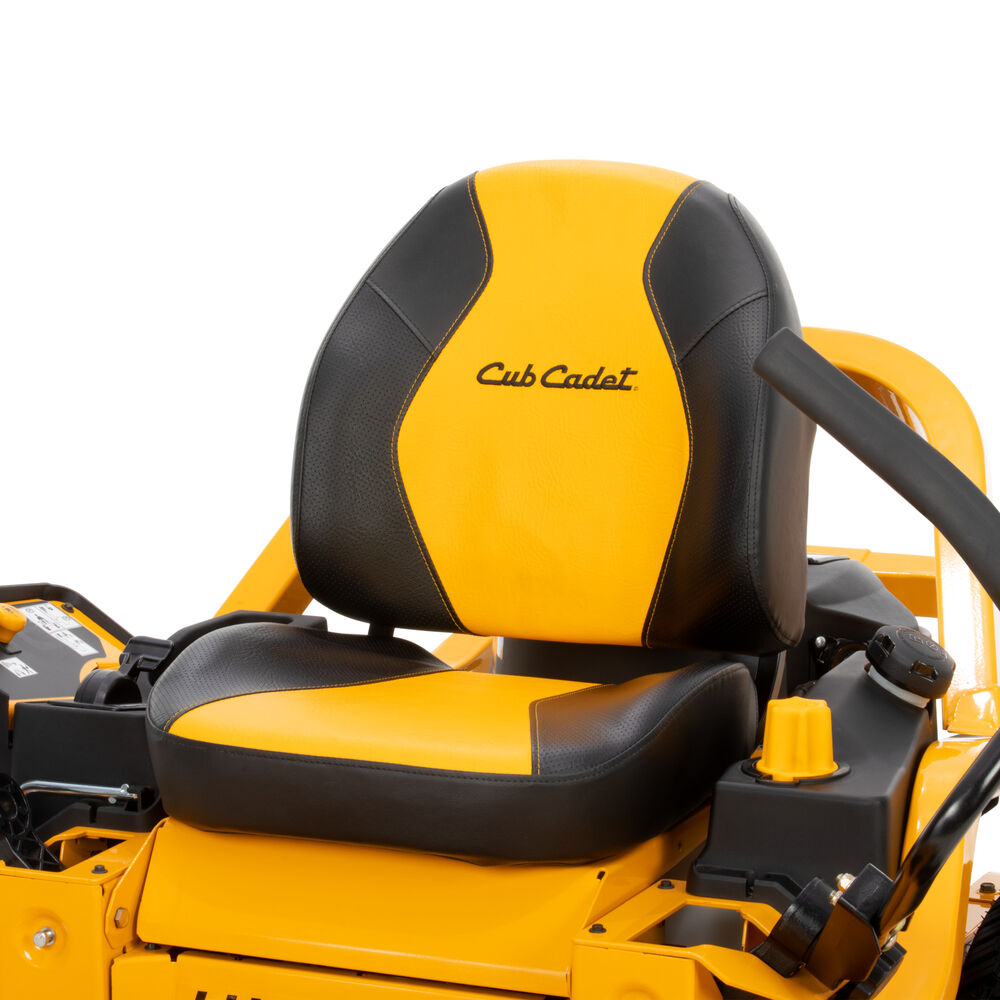

• Automotive-Inspired 20″ Seat – Ergonomic, fully adjustable with suspension to reduce rider fatigue
• 3-Position Adjustable Lap Bars – Accommodates riders of all shapes and sizes
• Mow-in-Reverse – Quickly position the mower to cut trickier spots

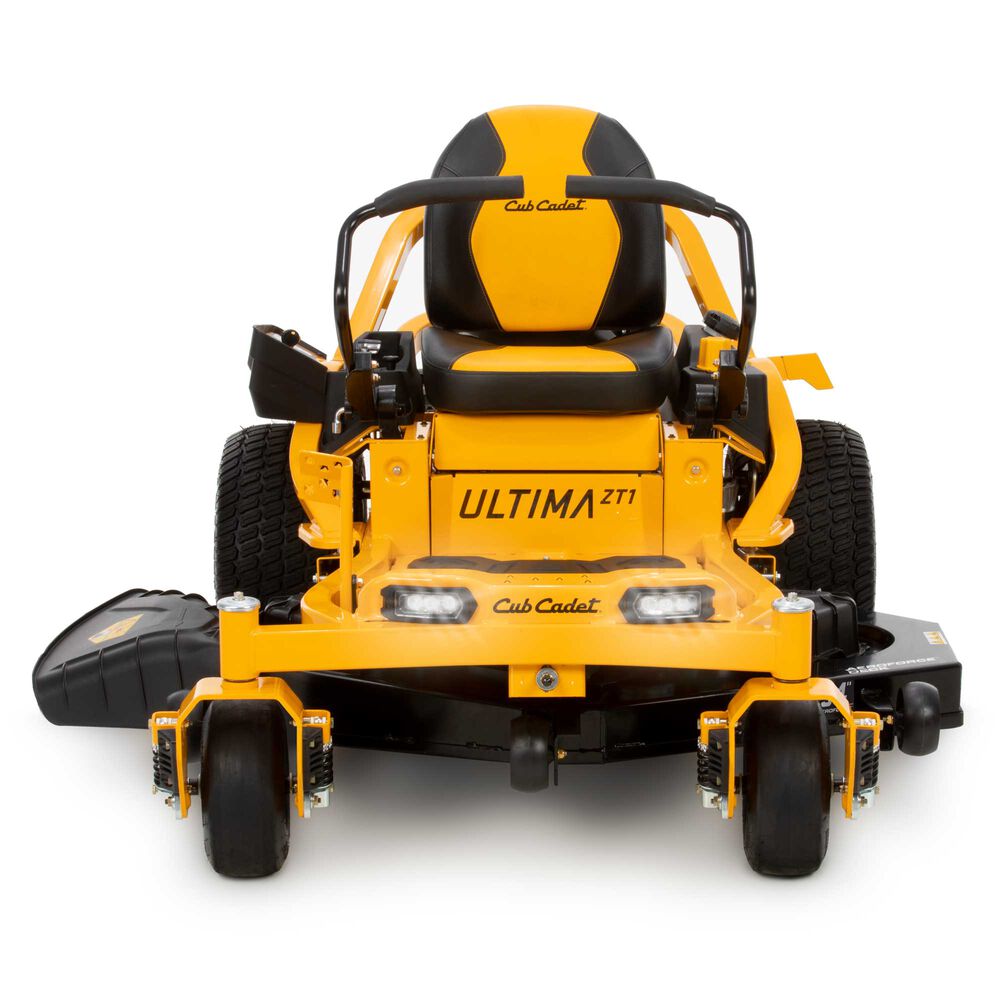

• Dual-LED Headlights – Unmatched visibility in low light

Full Specifications:

Engine

• Brand/Model: Kawasaki® FR Series, 691V
• Displacement: 726cc, Twin cylinder
• Output: 23 HP
• Air Filter: Dual element
• Choke: Separate choke
• Fuel Delivery: Carburetor
• Fuel Tank: 5 gal. US (13.25 L)
• Oil Capacity: 1 qt. US (2 L)
• Charging System: 15 amp regulated
• Governor: Mechanical
• Lubrication: Fully pressurized, with oil filter
• Starter: Electric, Ignition Key start

Cutting Deck

• Width: 54 in., 11-gauge steel, Fabricated construction
• Blades: 3
• Cutting Height Range: 1″ – 4.5″ (15 positions)
• Deck Lift: Foot pedal with dial adjust
• PTO Engagement: Electric
• Anti-Scalping: 3 gauge wheels

Drive System

• Type: Hydrostatic (Hydro-Gear® EZT 2200)
• Forward Speed: 7 MPH / 11.3 km/h
• Reverse Speed: 5 MPH / 5.6 km/h
• Turning Radius: 0°

Comfort & Controls

• Seat: 20″ high-back, knob adjustable
• Armrests: No
• Steering: Lap bars, 3-position adjustable
• Brakes: Disc
• Parking Brake: Lap bar integrated
• Cup Holder: Yes
• Headlights: Dual-LED

Battery

• 12V AGM, 210 CCA

Chassis & Tires

• Frame: 2″ x 2″ tubular steel with corrosion protection
• Front Tires: 11″ x 6″-5″

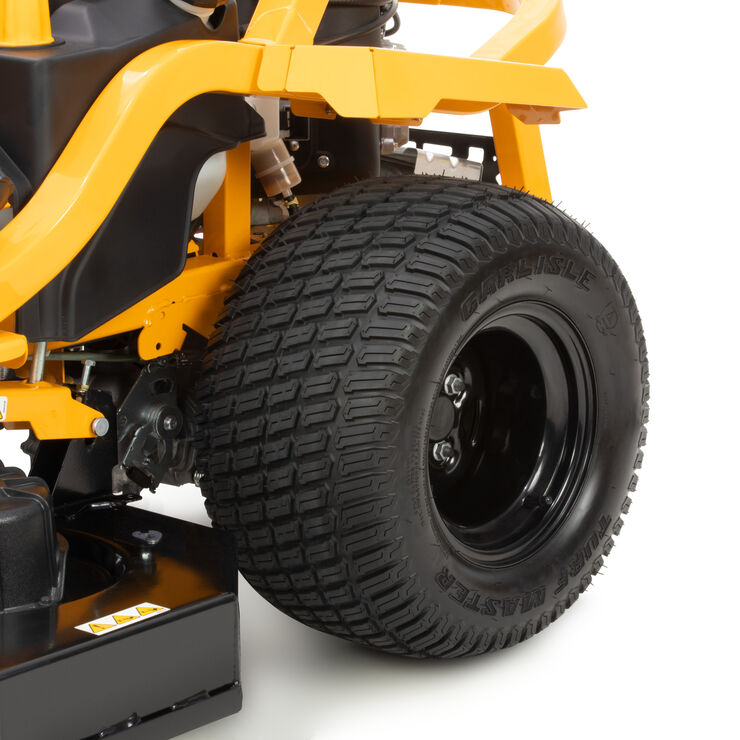

• Rear Tires: 20″ x 12″-8″
• Tire Tread: Turf Master / Multi Trac
• Rear Tow Hitch: Yes

Additional Specifications

• Hour Meter: No
• Mulch Kit: Available separately
• Operator Presence System: Yes

Model Number: 17AIEACMA10 Series: Ultima Series™ ZT
